Cambo Actus : Lens Compatibility Table

 In Cambo, Cambo Actus, News

Because of the innovation of mirrorless cameras the modern view camera has more opportunities to thrive than ever before. Using the Nikon Z series as an example, because of the change in design the flange focal distance–

flange focal distance (FFD), is the distance from the mounting flange (the metal ring on the camera and the rear of the lens) to the film plane. This value is different for different camera systems. The range of this distance, which will render an image clearly in focus within all focal lengths)

 –was reduced by 30mm which means that more lens options become viable as they no longer are limited to focusing at a much farther point on the sensor plane. Let’s compare this to some other modern flange distances:

Bayonet MountFlange Distance
Nikon Z (Z6, Z7)16mm
Fujifilm X (XPro2, XT3, etc)17.7mm
Sony E (A7,A7R, A7S,A9, etc)18mm
Hasselblad XCD (X1D)18.14mm
Micro 4/3rds19.25
Canon RF (EOS-R)20mm
Leica L (Leica SL, Panasonic S1, Panasonic S1-R)20mm
Fujifilm G (GFX-S, GFX-R)26.7mm
Canon EF (5D,5DS, etc)44mm
Nikon F (D850, D750, etc)46.50mm

If you have ever written us an email asking for help choosing lenses you may have been sent the below PDF “Cheat Sheet” that describes the most commonly available lenses today, and how well they play nicely with various modern camera systems.

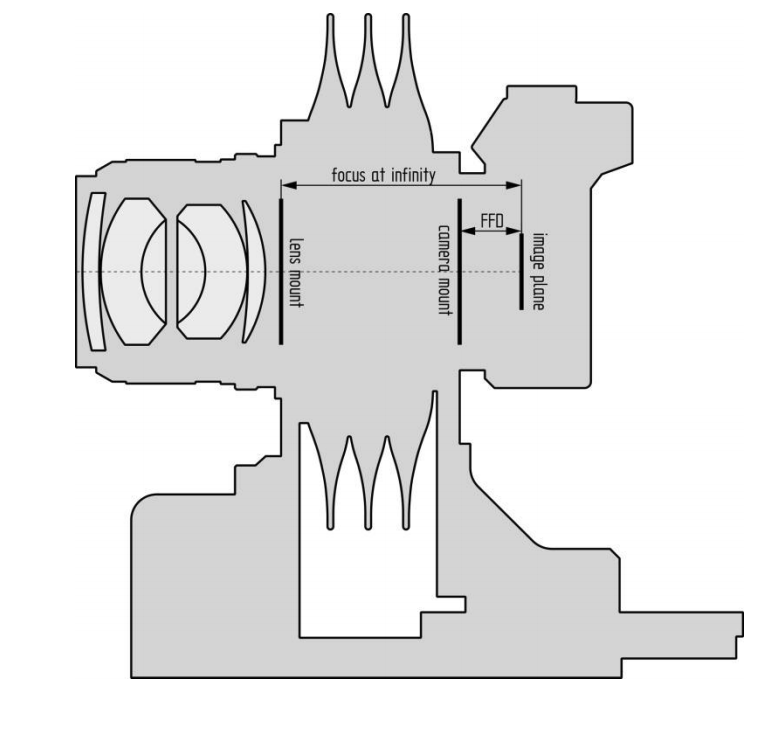

The Focal Flange Distance (FFD) is the distance between the image plane (image sensor) and the front of the camera interface (mount or bayonet).When focusing at infinity the distance between the lens and the image plane is the smallest. The distance between the rear of the lens and the camera standard, at infinity, determines the spaceleft for shift, tilt or swing movement of the Actus.

The Focal Flange Distance (FFD) is the distance between the image plane (image sensor) and the front of the camera interface (mount or bayonet).

When focusing at infinity the distance between the lens and the image plane is the smallest. The distance between the rear of the lens and the camera standard, at infinity, determines the space left for shift, tilt or swing movement of the Actus.

— = not compatible
○ = restricted movement
● = no restriction in movement

 Image Circle (mm) at f/11Actus DBHasselblad XCDFujifilm GFX-50 Fujifilm GFX-100sFujifilm GFX-100Nikon ZFujifilm XSony ECanon EF-mOlympusMFT plusPanasonic Olympus MFTCanon RFL-mount Leica Sigma PanasonicLeica MCanon EFPentax KNikon F
Bayonet lenses
Canon EF (s) 43 > 60 ----------------------
Nikon F43 > 60 ------------
Leica R43 > 60 ------------
Mamiya 64575------
Pentax 64575--
Hasselblad CF75
Mamiya RZ95
Mamiya RB95
Image Circle (mm) at f/11Actus DBHasselblad XCDFujifilm GFX-50 Fujifilm GFX-100sFujifilm GFX-100Nikon ZFujifilm XSony ECanon EF-mOlympusMFT plusPanasonic Olympus MFTCanon RFL-mount Leica Sigma PanasonicLeica MCanon EFPentax KNikon F
Cambo Actus Lenspanel
Actar 15 f/4.565------
Actar 19 f/4.071----
Actar 24 f/3.560--
Actar 35 f/3.5 Contax 75
Actar 60 f/475--------
Actar 80 f/485
Actar 90 f/490
Actar 105 f/5.6 HR-M82
Actar 120 f/5.6100
Image Circle (mm) at f/11Actus DBHasselblad XCDFujifilm GFX-50 Fujifilm GFX-100sFujifilm GFX-100Nikon ZFujifilm XSony ECanon EF-mOlympusMFT plusPanasonic Olympus MFTCanon RFL-mount Leica Sigma PanasonicLeica MCanon EFPentax KNikon F
Rodenstock (Copal 0)
HR Digaron-S 23 f/5.6 70--------------------------------
HR Digaron-S 28 f/4.5 70--------------------------------
HR Digaron-W 32 f/4 90------------------------------
HR Digaron-S 35 f/4 70------------------------------
Apo Sironar Digital 35 f/4.5 105--------------------------------
HR Digaron-W 40 f/4 90------------------------------
Image Circle (mm) at f/11Actus DBHasselblad XCDFujifilm GFX-50 Fujifilm GFX-100sFujifilm GFX-100Nikon ZFujifilm XSony ECanon EF-mOlympusMFT plusPanasonic Olympus MFTCanon RFL-mount Leica Sigma PanasonicLeica MCanon EFPentax KNikon F
Apo Sironar Digital 45 f/4.5 125------------------------------
HR Digaron-W 50 f/4 90------------------------
Apo Sironar Digital 55 f/4.5 125--------------
HR Digaron-S 60 f/4 70----------
HR Digaron-W 70 f/5.6 100--------
HR Digaron-SW 90 f/5.6 120
HR Digaron-S 100 f/4 70
HR Digaron Macro 105 mm f/5.6 82
Image Circle (mm) at f/11Actus DBHasselblad XCDFujifilm GFX-50 Fujifilm GFX-100sFujifilm GFX-100Nikon ZFujifilm XSony ECanon EF-mOlympusMFT plusPanasonic Olympus MFTCanon RFL-mount Leica Sigma PanasonicLeica MCanon EFPentax KNikon F
Apo Sironar Digital 105 f/5.6 125
Apo Sironar Digital 120 f/5.6 M 150
Apo Sironar Digital 135 f/5.6 150
Apo Sironar Digital 150 f/5.6 150
Apo Sironar Digital 180 f/5.6 150
HR Digaron-S 180 f/5.6 80
