NanLite Mixpanels

The Nanlite MixPanels uniquely combine three LED light sources into one compact housing, giving you the ability to switch between hard light, soft light, and colored light at the touch of a button. Coupled with ultra-bright light output, 0-100% dimming, a CRI of 98, a TLCI of 95, green/magenta adjustment, 43 gel presets in two light sources (3200K & 5600K), and 9 special effects; MixPanels are some of the most versatile RGBWW LED panels on the market.

Key Benefits

  • Multi-LED panel for hard light, a diffuse SMD LED panel for soft light
  • Ultra-Bright Output
  • CRI of 98 and a TLCI of 95 plus Green/Magenta
  • 43 Gel Presets
  • AC or Battery

Why It Matters To Us…

  • Amazing color reproduction
  • Professional system at a low price
  • 43 separate feature sets
  • Battery and AC make it incredibly versatile

The Nanlite MixPanel uniquely combines three LED light sources into one compact housing, giving you the ability to switch between hard light, soft light, and colored light at the touch of a button. Coupled with ultra-bright light output, 0-100% dimming, a CRI of 98, a TLCI of 95, green/magenta adjustment, 43 gel presets in two light sources (3200K & 5600K), and 9 special effects; MixPanels are some of the most versatile RGBWW LED panels on the market.

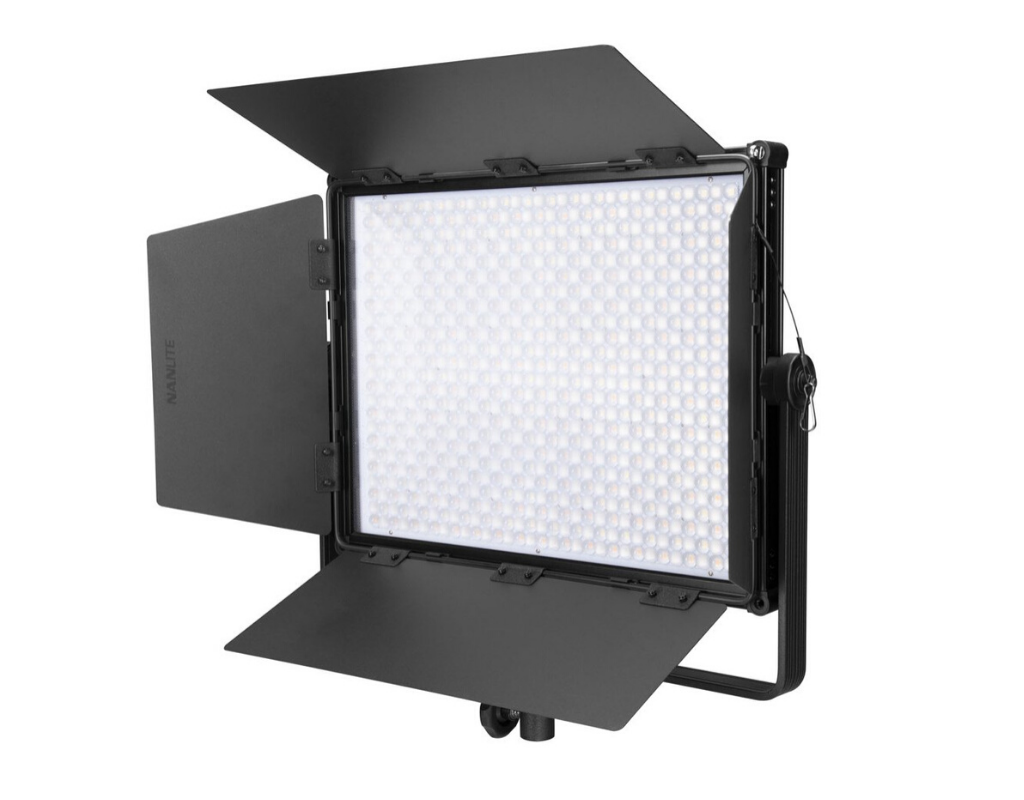

Three LED Light Sources in One Compact Panel – NanLite MixPanels are capable of switching between a “traditional” multi-LED panel for hard light, a diffuse SMD LED panel for soft light and a Tunable RGB panel for colorful, creative effects at the push of a button.

Now, whether you need hard lighting with more throw, diffused lighting for flattering portraits and up-close work, or colored light to set moods and express emotions, you can do it all in one unit with no additional accessories.

Ultra-Bright Output – When using the hard light fixture in normal mode, the MixPanel 150 emits an impressive 11320 Lux@1m 5600K. When shifted into boost mode the output climbs even higher to 14950 Lux at 1m. Plus with dimming from 100% down to 1%, you can quickly adapt the MixPanel 150 to any scene without adding ND gel or diffusion.

Color Perfection — The brightness of a light is important, but without color accuracy, a ton of time and money will be lost in post-production. The MixPanel 1500 features a CRI of 98, a TLCI of 95 plus Green/Magenta adjustment in CCT mode, meaning you can shoot with confidence knowing the color reproduction will be precise.

Intuitive User Interface – If there is one thing an RGBWW LED panel can not be it’s cumbersome to use on set. That is the MixPanel 150’s operating system has been developed from the ground up to be efficient and intuitive to use. What’s more, you can save your settings as presets to make your lighting consistent and repeatable.

Gel Emulation and Practical Effects – The MixPanel’s gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor. Also, with 9 pre-programmed and adjustable special effects, the MixPanel makes it possible to imitate lighting scenarios that can otherwise be tricky to recreate such as hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.

Power Anywhere — Optimized for use in the studio or on location, the MixPanel 150 can run off either the included AC adapter or 26V V-Mount batteries (Not Included), so you can operate in any location regardless of power availability.

QUICK SPECS

  • Size L/W/H: 19 x 3 x 16 in
  • Weight: 9 lbs
  • Color Temp: 2700-7500K
  • CRI: 98
  • TLCI: 95
  • Dimming: 0-100%
  • Lumen Output 7500K: 12144 Lumen
  • Lux @ 1m 5600K Boost & Soft Light Mode: 2200 lux
  • Lux @ 1m 5600K Boost & Hard Light Mode: 14950 lux
  • Lux @ 1m 3200K Boost & Soft Light Mode: 1941 lux
  • Lux @ 1m 3200K Boost & Hard Light Mode: 15040 lux
  • Power Source: DC24V/7.5A
  • Max Power Draw: 150w
  • Battery: Sony V-Mount 26v Battery (Not Included)
  • Battery Run Time at 100% Brightness (approx): 1.3hours (26v Sony V-Mount 230wh)
  • Mount: 5/8″ Receiver
  • Gel Emulation:43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor
  • Special Effects: hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.
  • Green/Magenta Adjustment: Yes in CCT Mode
