Phase One Releases The 40mm Tilt Lens for XT

 In News, Phase One, Phase One Lenses, Phase One XT

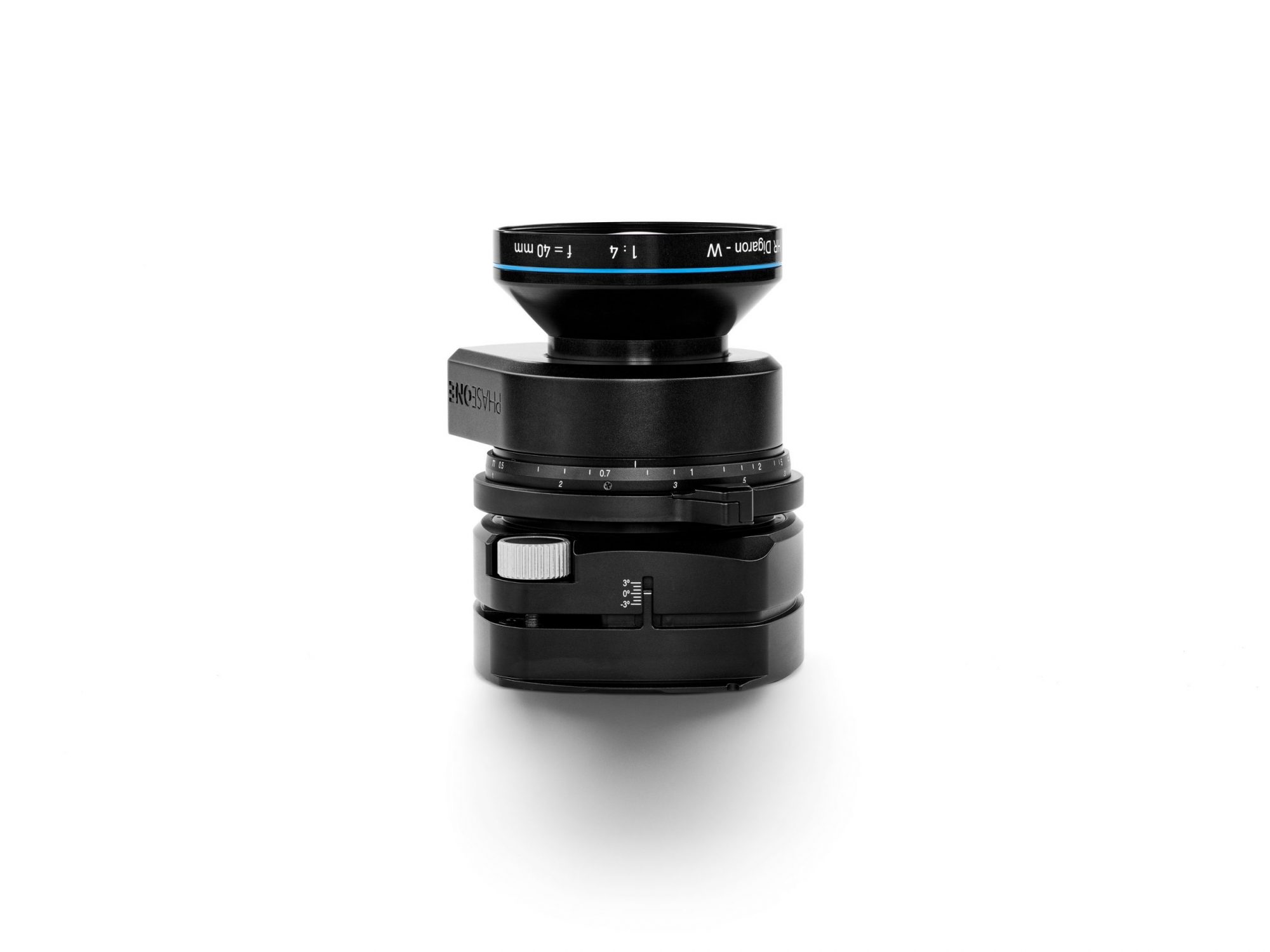

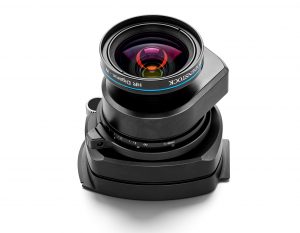

Xt Camera Phase One HR Digaron W 40mm

The HR Digaron-W 40mm f/4 Tilt wide angle lens is an essential for dedicated landscape photographers. The innovative Tilt design is optimized for landscape scenes allowing for fine focal plane control, maximizing depth of field. When coupled with the 12mm shift of the XT Camera, the 3° Tilt abilities of the lens puts image quality and composition control at your fingertips.

Phase One XT Features:

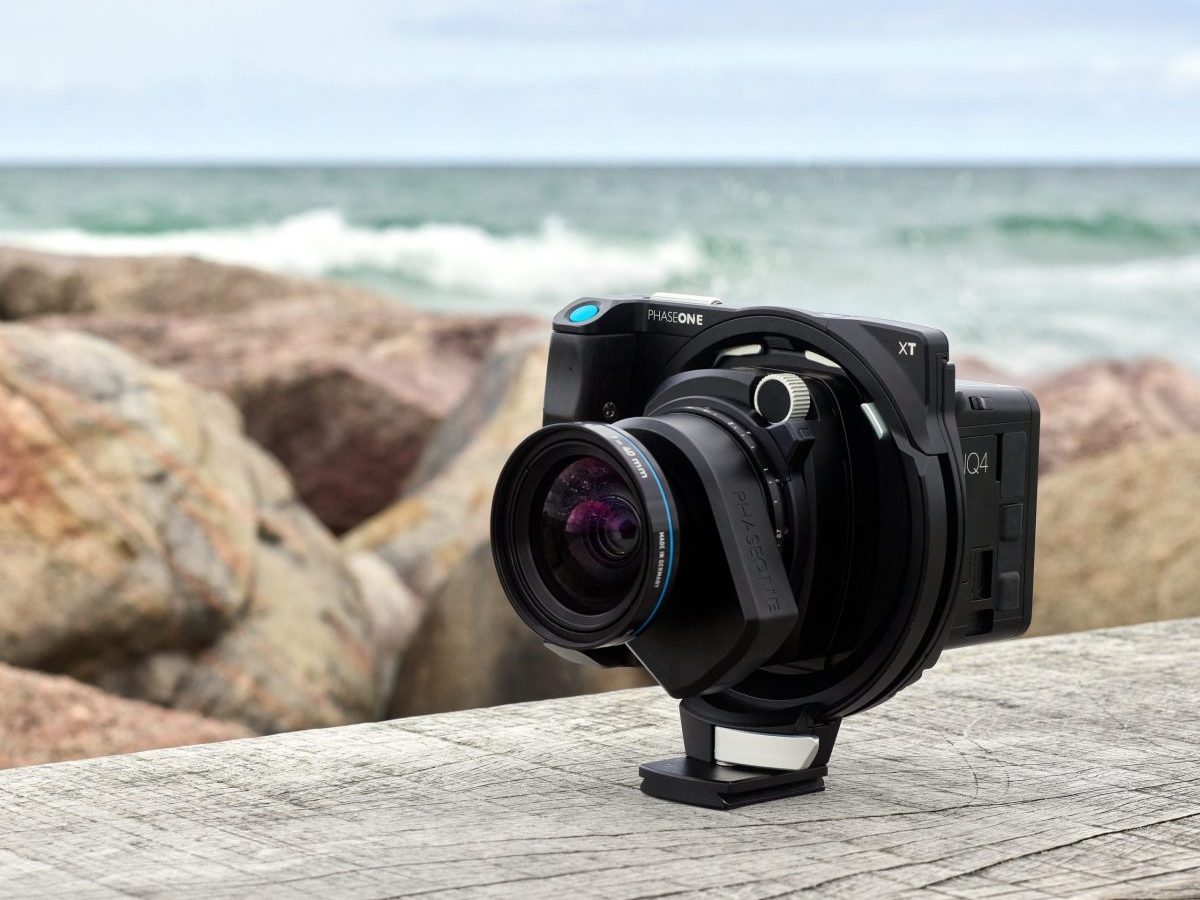

XT Camera Phase One 40mm Lens Rodenstock

Frame Averaging

An Automated tool to achieve the long exposure aesthetic without filters.

Automatic Metering

Aperture Value, Time Value, and Program modes – unprecedented in a field camera.

Mobile Integration

Seamless integration between camera and mobile for easy operation.

Perspective Correction

Stitching and perspective correction capabilities thanks to built-in 24mm vertical and horizontal shift.

The XT-Rodenstock HR Digaron-W 4.0/40mm Tilt is dedicated to impeccable landscape photography, offering outstanding sharpness and unbeatable image quality. It introduces a simple and distinctive tilt design to adjust the focal plane, controlling depth of field and improving sharpness throughout the image.

XT Sample images 40T beach Phase One
Xt Camera Phase One HR Digaron W 40mm


Aperture Range f/4 – f/22
Angle of View 94°
Image Circle 90 mm
Focusing System Ultra fine manual focus
Diaphragm Automatic
Filter 67 mm
Shutter Speeds1/1000 – 1s (X shutter)
1/4000 -60m (IQ4 Electronic Shutter)
Tilt Value +/- 3°
Dimensions 105x107x95 mm / 4.14 x 4.21 x 3.74 in
Weight 995g / 2.2lb
Equivalent to 35mm24mm
Min. focus distance 45cm / 1.5ft

Movement Ranges at Sensor Sizes

24 x 36 mm↑ 29 → 25
33 x 44 mm↑ 23 → 20
40 x 54 mm↑ 16 → 13


Mount XT Mount
Supported Systems XT Camera
Recommended Working Aperture 5.6-8
